EZ-108 Oil Drain Valve – M16 × 1.5 | Select Kubota & Komatsu Diesel

Cleaner oil changes with EZ-108

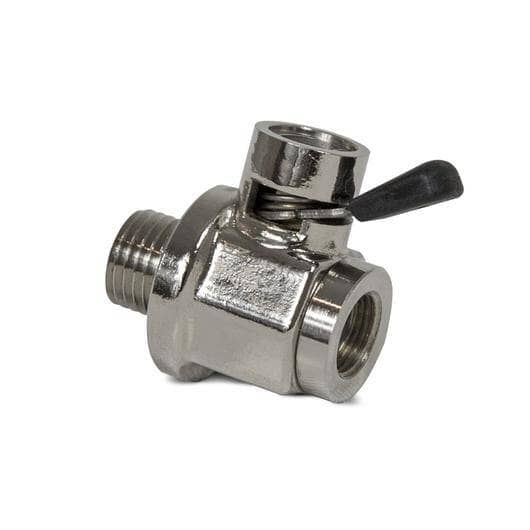

Replace the standard drain plug with a nickel-plated brass ball valve. Lift the locking lever and turn it a quarter turn to drain; return it to the closed position when finished.

Specifications

• Part number: EZ-108
• Drain-plug thread: M16 × 1.5
• Body size: Small
• Drain-hole inside diameter: 7.5 mm

Selected diesel applications

• Kubota Z600B, D782, V1903 and V2003 examples.
• Kubota V2203 front-drain applications.
• Selected Komatsu engines including S3D84, S3D84E, 3D66 and 3D72N.

Hose connection

H-001 straight or L-001 90° fitting; 3/8-inch inside-diameter hose. Fittings and hose sold separately.

Fitment and installation

A-108 adapter may be needed for a recessed drain port. Verify the exact engine and drain-port position. Match the original drain-plug thread, sealing surface and available clearance. Use the specified installation torque and check for leaks.

Application & adapter charts

View our EZ valve application and adapter size charts to compare engines, threads, hose ends and adapter requirements.
