EZ-101 Oil Drain Valve – 1/2"–20 UNF | Ford IDI Diesel
1/2"–20 UNF valve for early Ford 6.9L/7.3L IDI diesels and selected International engines. Verify 1994 transition models before ordering.

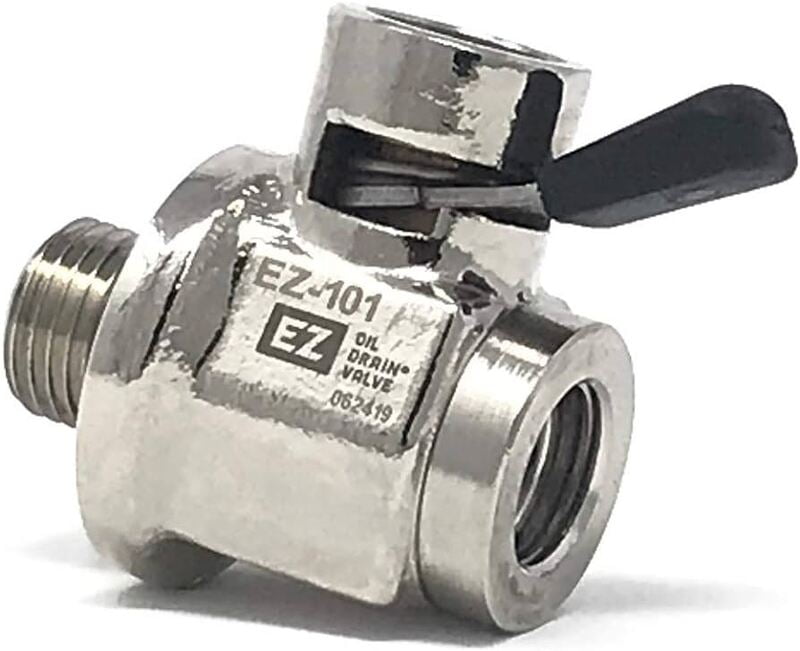

EZ-101 • OIL DRAIN VALVE
1/2"–20 UNF
Make routine oil changes easier. This nickel-plated brass valve replaces the standard drain plug so you can open the drain by lifting the lever and turning it a quarter turn, then return it to the locked position.
Vehicle & engine fitment
- Ford 6.9L and 7.3L IDI diesel
Early applications through 1994 with a 1/2"–20 UNF drain plug. - International engines
Selected V304, V345, V392, MV404, V420 (6.9L), MV446 and DT360 through 1993. Check the EZ chart.
1994 is a transition year: confirm IDI versus Power Stroke and the actual drain-plug thread. M14 × 1.25 Power Stroke applications use EZ-111.
Hose fitting options
Use H-001 (straight) or L-001 (90°) with 3/8" inside-diameter hose. Hose fittings and hose are sold separately.
Installation & use
Match the original drain-plug thread and confirm installation clearance. Follow EZ's installation and torque instructions. Check for leaks after installation and ensure the lever is locked closed before operating the vehicle.
Application & adapter charts
View our EZ valve application and adapter size charts to compare engines, threads, hose ends and adapter requirements.
